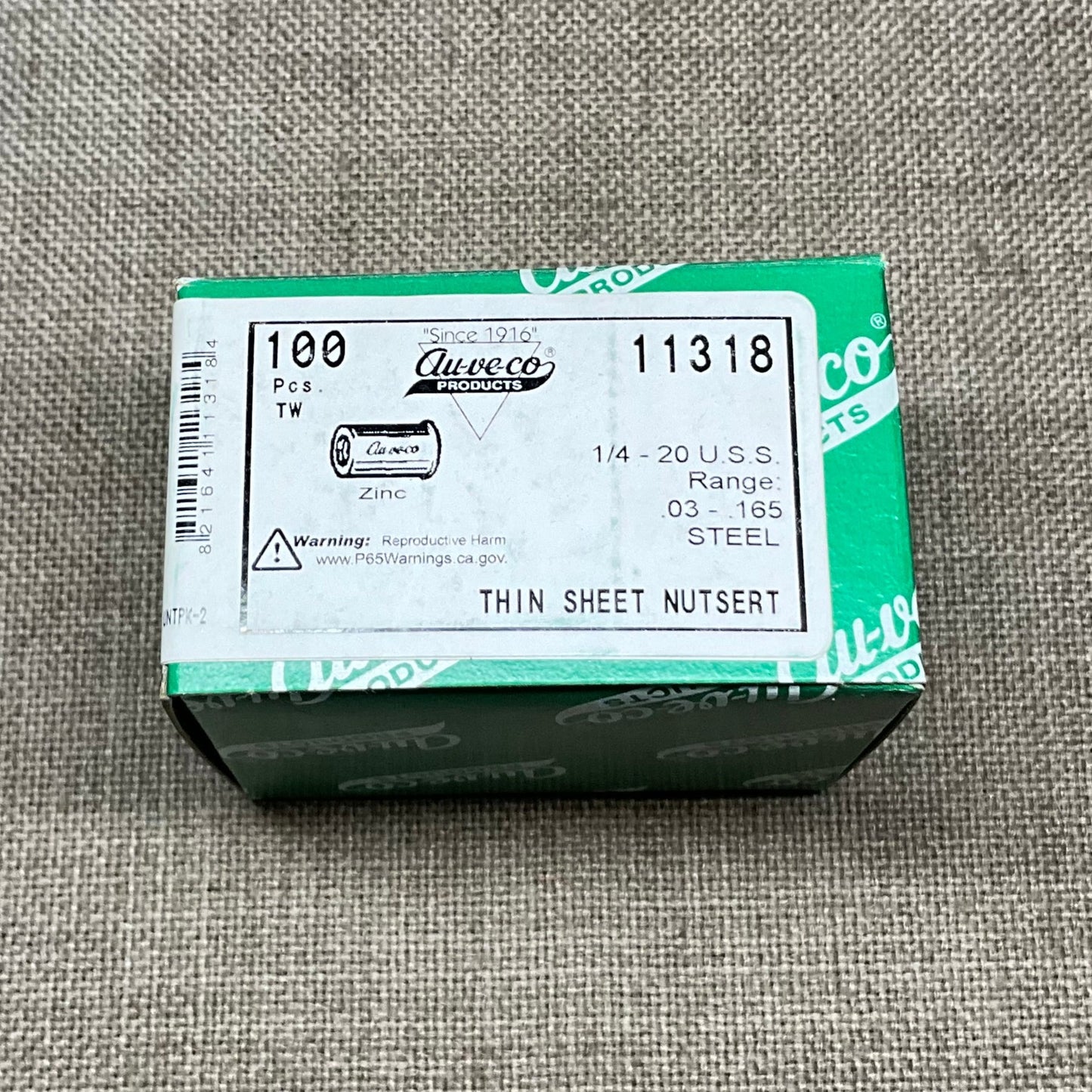

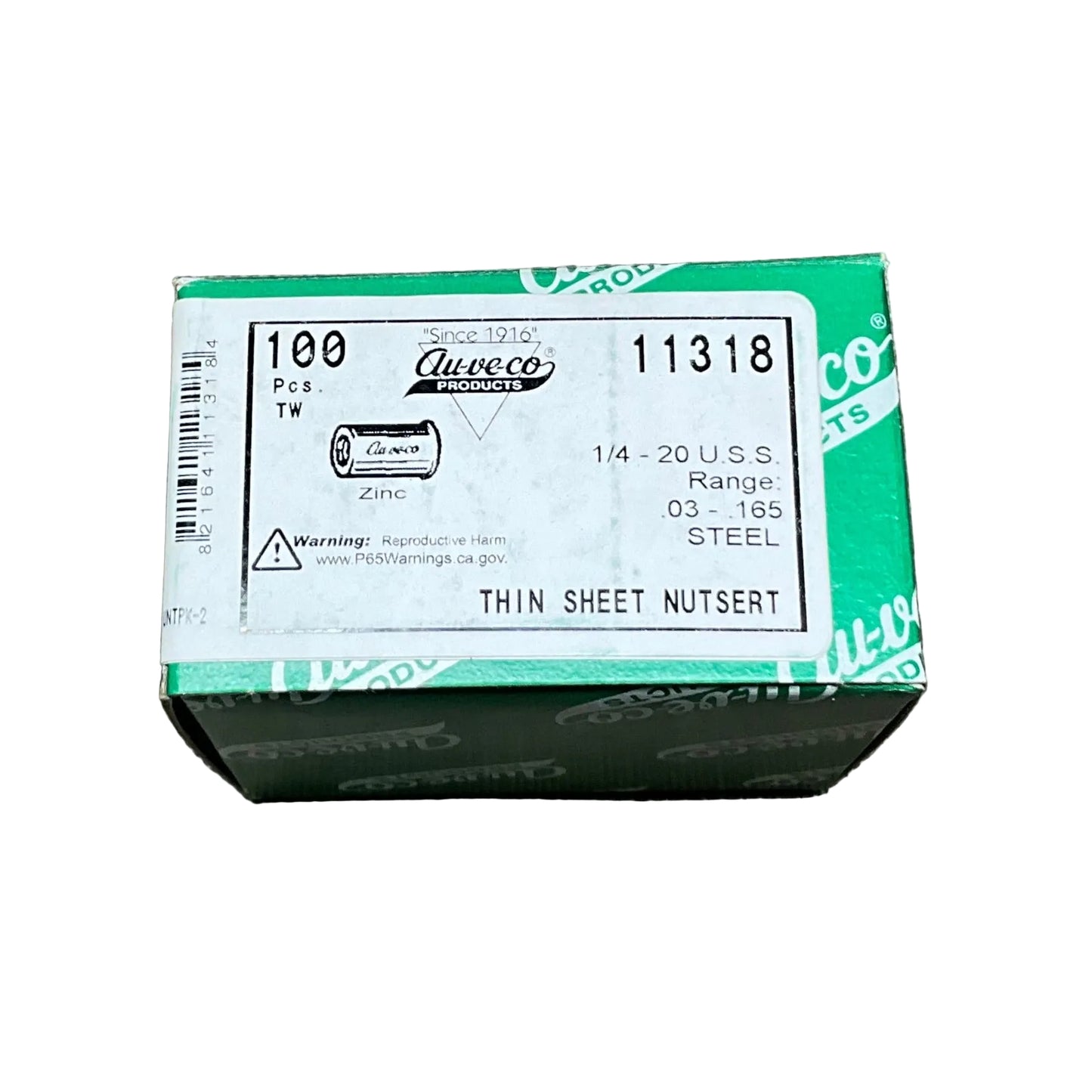

100 Thin Sheet Nutserts Inserts Auveco 11318 Auto Car Truck Van ATV Universal

100 Thin Sheet Nutserts Inserts Auveco 11318 Auto Car Truck Van ATV Universal

Regular price $44.50
Regular price Sale price $44.50
Sale Sold out
Shipping calculated at checkout.
100 Thin Sheet Nutserts

Nutserts have been designed to provide a highly efficient method of securing threads from one side of the working material generally too thin to support threads. Its performance has been proven in plastic, aluminum, mild steel, and fiberglass with-standing high loads with out vibrating or loosening under extreme operating conditions.

The Auveco Thin Sheet Nutsert is a tension fastener with high pull out, insuring no rotation or vibration where a cover plate is used.

The systems unique blind tooling installs TSN's at consistent rates using unskilled labor.

The dimensions of the Steel Thin Sheet Nutsert:

Threaded size after installation
1/4" - 20 U.S.S.

Recommended Grip Range
..030 - .165"

A MAX
.347"

B MAX
.610"

D REF.
.415"

HOLE SIZE
.375 - .379

DRILL SIZE
3/8"

The Construction is Steel :

1010 Low Carbon Steel
Type 11
 Class 3
With Zinc Plate, Clear Chromate
